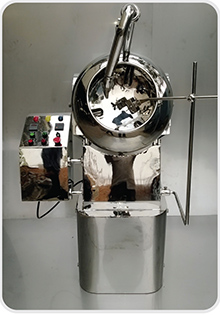

The Platinum Pharmatech coating pan is designed for tablet and pellet coatings. The rotational speed, angle of inclination of pan, volume and temperature are evaluated and developed with recently developed coating methods. The shape of the bowl is designed that it achieves improved cascade times and the tablet travels along an identical path. This design helps in self mixing and the coating tablets to have geometric uniformity.
Features
- Pan is made out of food stainless steel quality to prevent undesirable chemical reactions.
- This machine especially made for powder coating on tablets, confectionery items etc.
- The pan rotates in circular direction at a selected speed so that coating is done to its perfection.
- Well-designed control panel ensures easy operation of the machine.
- Easy cleaning process.
- User friendly.
- Ratings: 2 -5 BHP.
Model |
Gross cap Kgs |
Working cap Kg |
RPM |
Pan Motor HP |
Blower capacity CFM |
Heater Cap in K.W. |
Blower |
Gear Box |
PPTCP12” |
8 |
3 |
6-36 |
0.5 |
50/100 |
2kw |
0.25 |
2”SNU |
PPTCP14” |
12 |
4 |
6-36 |
0.5 |
50/100 |
2kw |
0.25 |
2”SNU |
PPTCP18” |
25 |
6 |
6-36 |
0.5 |
100/150 |
2kw |
0.25 |
2.54”SNU |
PPTCP24” |
45 |
12 |
6-36 |
1 HP |
100/150 |
2kw |
0.5 |
2.54”SNU |
Note: Coating pan is available with Lid Model & without Lid Model.
Coating PAn
